Science Instruments

Rendering TMT Structure and Primary Mirror

Stylized view of the Thirty Meter Telescope with the telescope tube structure suppressed to highlight instruments. You can see WFOS on the right, and NFIRAOS on the left. NFIRAOS feeds MODHIS and IRIS.  Note there is plenty of space on the Nasmyth platforms for future instruments.

Narrow Field InfraRed Adaptive Optics System (NFIRAOS)

Equipped with the two deformable mirrors and six laser guide stars, TMT’s facility multi-conjugate adaptive optics system will provide a uniform, high Strehl (50% in H-band) correction across a two arcminute field view with high sky coverage. NFIRAOS will enable the measurement of the position of faint stars with 15 microarcsecond accuracy, that's the resolution of a quarter placed on the moon as observed from Earth.  NFIRAOS feeds three instruments with IRIS and MODHIS being the first two.

Currrent Status: Production Readiness/Fabrication

Full Description⇒

M31

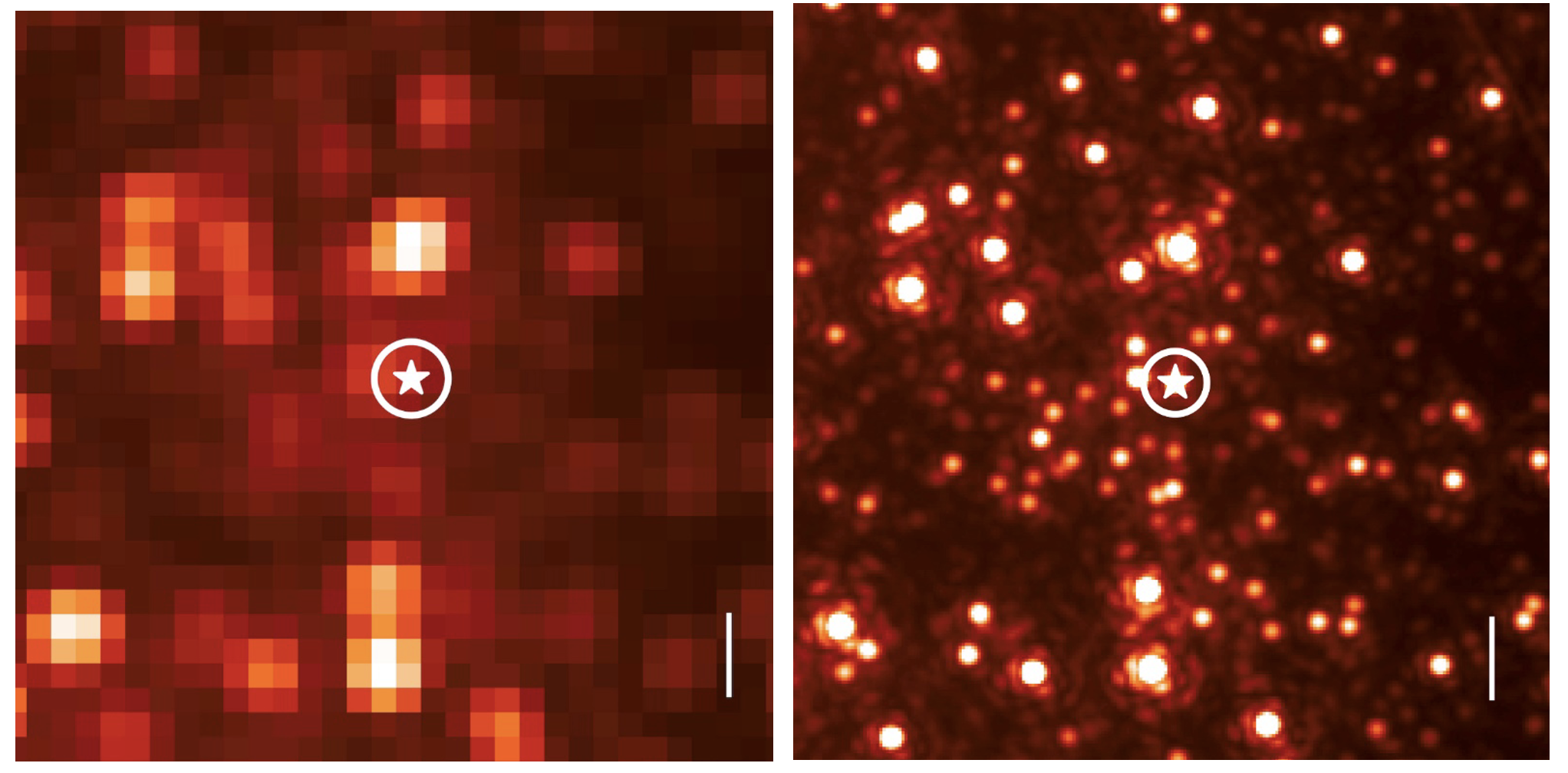

TMT's NFIRAOS will provide images over 12 times sharper than Hubble space telescope (and 4.5 times sharper than JWST). Shown here is a the nucleus of the Andromeda Galaxy, M31 through HST and a simulated version of the same area via TMT's IRIS fed by NFIRAOS. This level of detail will allow us to explore the dynamics of the stars at the center of Andromeda, learning more about the central supermassive black hole there, comparing it to ours in the center of the Milky Way.  Image Credit: Tuan Do. Hubble Space Telescope image courtesy of NASA/ESA/Hubble

Infrared Imaging Spectrometer (IRIS)

Fed by NFIRAOS, TMT's advanced multi-conjugate adaptive optics system, IRIS contains a near-infared imager with a half arcminute field of veiw and an integral field spectrograph.  IRIS will simutaneously capture images and spectra of faint targets.  IRIS will observe stars, galaxies, and planetary syatems, and is capable of resolving the motion of stars around black holes in the center of nearby galaxies.

Current Status: Final Design Phase

Full Description⇒

Keck and TMT adaptive optics systems

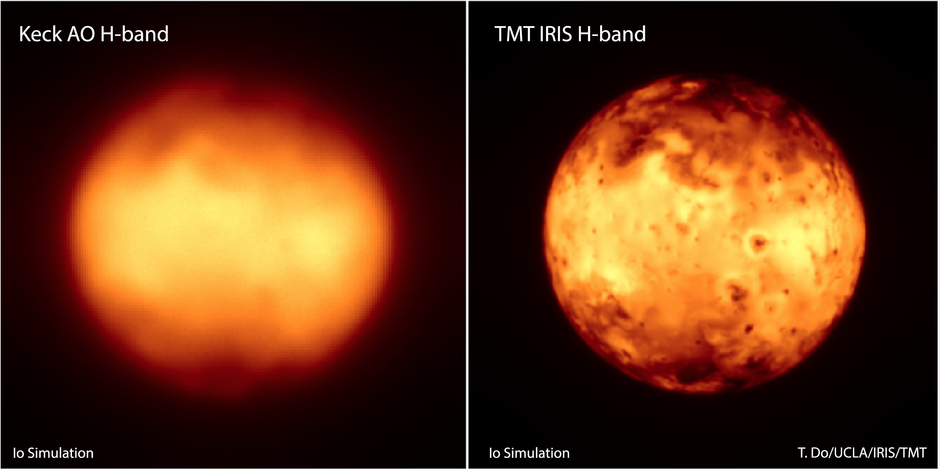

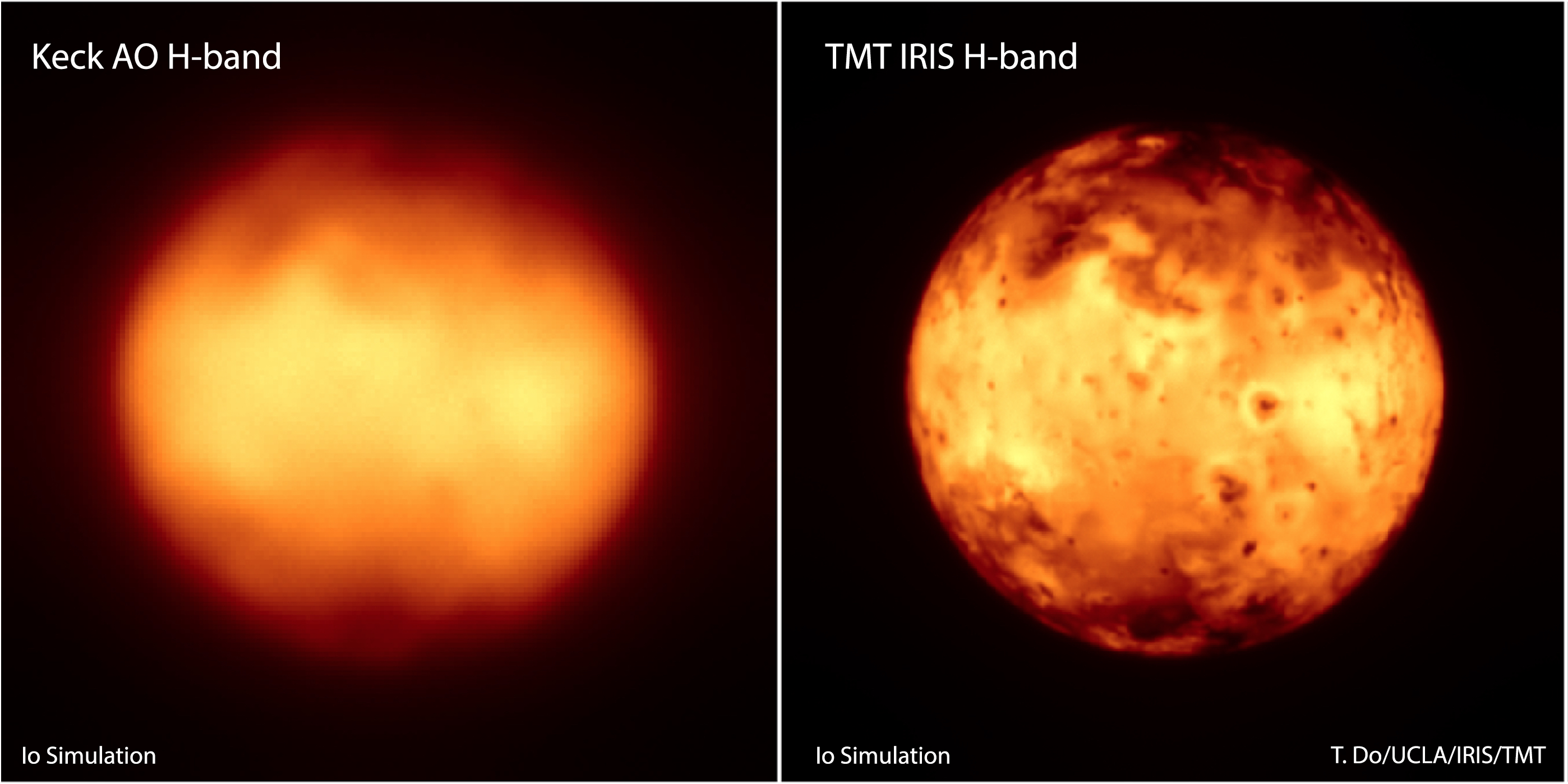

IRIS on TMT will allow us to explore volcanism on other objects in the solar system.  Simulated comparison of imaging of Jupiter’s moon Io, by the W.M. Keck Observatory and TMT IRIS instrument. Image Credit: Tuan Do (University of California Los Angeles), the TMT InfraRed Imaging Spectrograph collaboration, and TMT International Observatory, LLC.

Quick Links
A realistic simulation of NFIRAOS and IRIS.

IRIS attached to NFIRAOS

Exposure Time Calculator
Documentation

Multi-Objective Diffraction-limited High-Resolution Infrared Spectrograph (MODHIS)

MODHIS will deliver high resolution spectra and precision radial velocities in the near infrared aided by the adaptive optics correction of NFIRAOS. With its high sensitivity and precision, MODHIS will explore exoplanetary atmospheres and stellar dynamics, seeking life signatures like oxygen and methane around distant worlds.

Current Status: Conceptual Design Phase

Full Description⇒

habitable zone

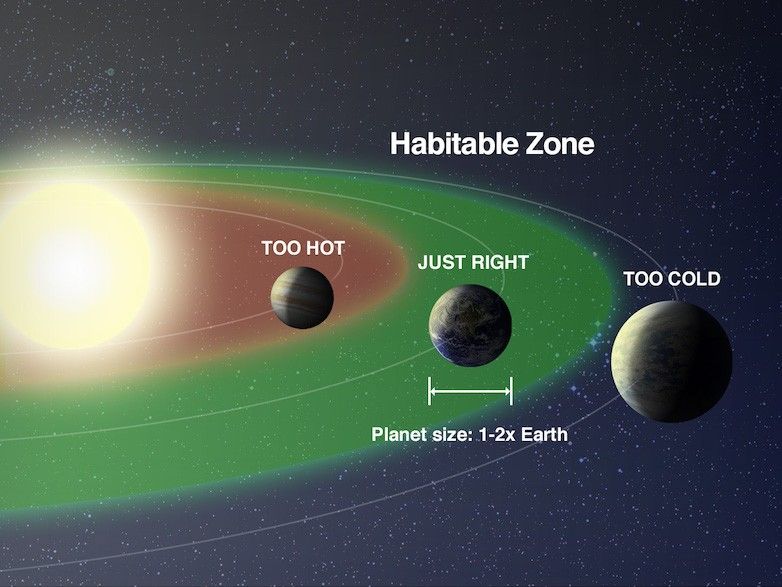

TMT's MODHIS will be able to detect and characterize rocky Earths and Super Earths orbiting the habitable zones of dwarf stars that are within 25 pc of Earth. Image credit: NASA

Quick Links
A realistic simulation of NFIRAOS mounted on the Nasmyth platform.

MODHIS front-end instrument is mounted in blue at the top of NFIRAOS with the grey box on the left contains the MODHIS spectrograph

Exposure Time Calculator
Documentation

Wide-Field Optical Spectrometer (WFOS)

WFOS will capture images and spectra across a large field of view, from ultraviolet to near-infrared wavelengths. WFOS’s ability to obtain spectra for up to 96 targets simultaneously makes it ideal for studying everything from objects in our solar system to distant galaxies. With its powerful multi-object spectroscopy, WFOS will allow astronomers to survey large regions of the sky efficiently, providing insights into galaxy formation, evolution, and the nature of dark matter.

Current Status: Preliminary Design Phase

Full Description⇒

WFOS Science Case - IGM and CGM Tomography

WFOS will have the sensitivity and the multi-object capability to use numerous faint galaxies as background sources to build an accurate map of the 3D intergalactic medium. This will help us understand how galaxies and the universe itself evolved.

Quick Links
A realistic simulation of looking at the WFOS instrument from the TMT primary mirror.

A view of WFOS from the tertiary mirror

Documentation

First Decade Instruments

The entire TMT observatory has been designed to support a wide range of different forms of facility class instrumentation. To do this, a suite of instrument concepts was developed and the observatory design was developed around them. These longstanding ideas for instruments have continued to evolve. Several instrument concepts are being actively developed and are evolving beyond the original ideas: MICHI a mid-infrared spectrometer, IRMOS a multiple IFU infrared spectrometer, HROS a high resolution optical spectrometer, and PSI a high contrast planetary finder and characterizer.

Full Description⇒
